SPECIFICATIONS | hs-28 |
DESCRIPTION | Powered dual 18 inch ACM™ subwoofer system |
ACOUSTIC DATA |
Frequency Response -3dB (+- 1.5 dB) | 35 – 80 Hz |
Efficiency (1W/1m) | 99 dB SPL |
Max Peak SPL (band limited pink noise 6 dB crest factor | 140 dB SPL half space peak |
Max SPL Long Term (SPL @ 1 M before protection Sine Wave) | 128 dB SPL Free Field |
Coverage Horizontal & Vertical | 360 degrees – 6 dB |
AMPLIFIER DATA |
Amplifier Power (Long Term Sine Wave before protection) | LF 1: 830 wattsLF 2: 830 watts |
Peak Amplifier Power ( @ 1% THD+N) | LF 1: 2000 wattsLF 2: 2000 watts |
Amplifier Protection | Input limiter, short circuit protection, DC protection of output, intelligent mains fuse protection, power stage overload protection, temperature protection of transformers and heat-sinks |
Operational Voltage | Universal Mains, 85-268V (dual voltage auto selection). UREC™ power supply provides true universal worldwide mains operation for 120V and 230V, eliminating the need for market specific self-powered loudspeakers and related reliability issues. |
THD+N (typical) | < 0,05 % (20 Hz – 20 kHz, 3 dB below rated power) |
DSP | 96k Hz sample rate, mixed-mode 64-bit digital processing, 120 dB dynamic range, less than 600 microseconds latency |
Control Network | Ethernet / TCP/IP, Fixed IP or DHCP remote monitoring and control |
TRANSDUCER DATA |
LF Description | Dual 18”, paper cone, cloth surround, 4” (100 mm) voice coil, ferrite, 8 Ohm |
PHYSICAL DATA |
Inputs | Female XLR input with male XLR loop output for both Analogue input and AES EBU digital input (default digital AES channel 1, channel 2 selectable remotely via software). If clock is present system uses AES digital input. System will fall back on analog input if clock is not present. Dante audio over ethernet. |
Cabinet Material | Multi-ply birch hardwood |
Cabinet Finish | Black 6-layer coating |
Dimensions (H x W x D) | 21.18 x 38 x 32.01 in (538 x 965 x 813 mm) |
Weight | Net: 228.1 lbs (103.46 kg) / Shipped: 259 lbs (117.48v kg) |
hs-28 – 듀얼 18" 액티브 서브우퍼 스피커
기본 정보

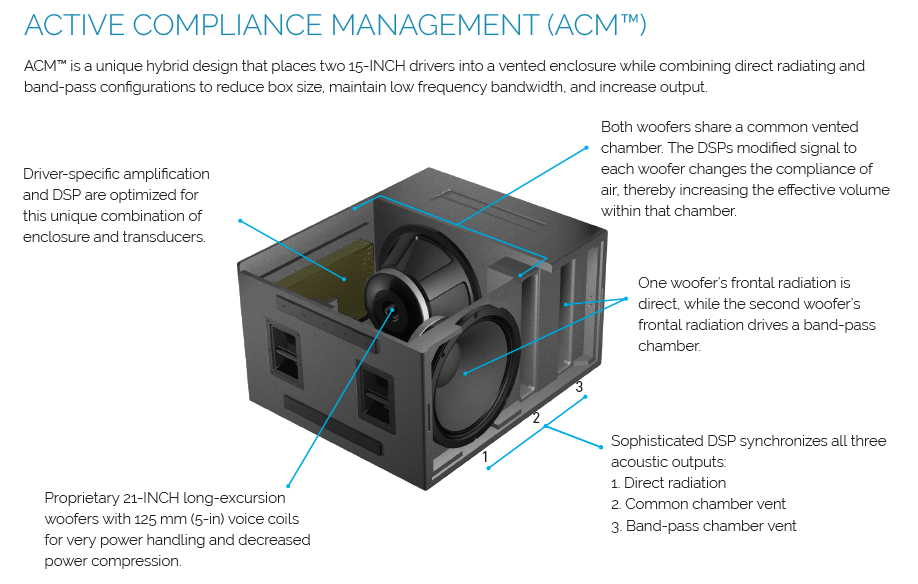

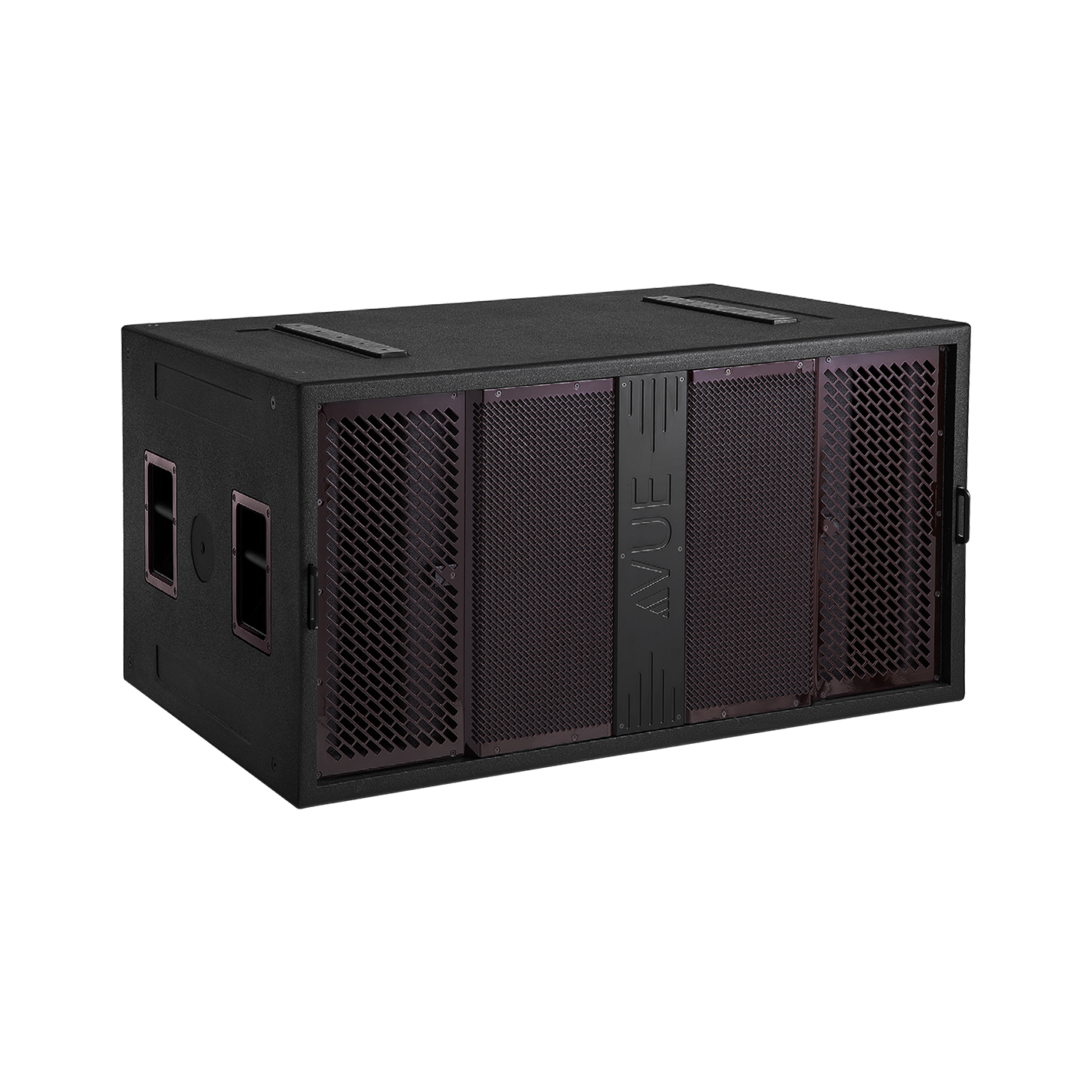

VUE의 주력 서브우퍼인 듀얼 18인치 hs-28은 특허인 ACMTM기술을 사용합니다. hs-28 역시 두 개의 프리미엄 18인치 트랜스듀서를 인클로저 내 함께 배치하며 두 우퍼가 같은 챔버를 공유하여 소리를 낼 수 있도록 내부 DSP 가 정밀하게 어쿠스틱 출력을 조절합니다. 먼저 한 우퍼는 전면 복사를 담당하고, 다른 우퍼는 밴드패스 챔버로 복사를 담당합니다. 정교한 DSP는 전면 우퍼와 양쪽 통풍구의 위상 도달을 정확하게 정렬합니다. 덧붙여, hs-28에는 830W의 순수 사인파 전력(2000W "피크")을 각 우퍼로 보내는 강력한 듀얼 모노 앰프를 포함한 전원 모듈을 탑재하고 있습니다.
ACMTM 구성에는 이에 맞는 고성능 트랜스듀서가 필요합니다. hs-28용으로 개발된 정밀하게 설계된 장거리 18인치 우퍼는 저전력으로 파워 핸들링을 증가시키는 대형 4인치 보이스 코일을 사용합니다 이 ACMTM 및 특수 설계된 트랜스듀서 및 DSP의 조합을 통해 hs-28은 대부분의 18인치 듀얼 서브우퍼보다 작은 인클로저를 사용함에도 불구하고 사용 주파수 대역폭 전체에 걸쳐 훨씬 더 높은 출력을 제공할 수 있습니다.
Rugged Design and Stage Ready
또한, hs-28의 작은 설치 공간 덕분에 서브우퍼 어레이를 매우 쉽게 조립할 수 있습니다. 예를 들어 6개의 hs-28 스택은 너비가 6피트, 높이가 5피트에 불과하며 최대 142dB SPL의 저음을 출력합니다. hs-28의 매우 선형적이고 일관된 응답은 카디오이드 스택 및 엔드 파이어 어레이를 포함한 지향성 서브우퍼 어레이가 필요한 현장에서 hs-28을 가장 가장 이상적인 스피커로 만드는 구성 요소입니다.
모든 h-Class 시스템과 마찬가지로 hs-28에는 네트워킹 기능이 이미 탑재되어 있습니다. SystemVUE는 표준 IP 프로토콜을 사용하며, 이를 통해 손쉽게 로컬 네크워크에 연결할 수 있습니다. 사용자는 SystemVUE 소프트웨어를 통해 hs-28 설정에 액세스하고 스피커의 동작을 모니터링할 수 있습니다.
hs-28은 공진을 없애기 위해 특수하게 디자인된 프리미엄 등급의 자작나무 합판으로 제조되었습니다. 덕분에 견고한 인클로저에 이 풍부한 서브우퍼의 장점을 모두 담았습니다. 내구성이 뛰어난 6단계 Dura Coat 마감 처리로 렌탈과 같은 이동이 잦은 환경에서도 수년간 hs-28을 보호합니다.
hs-28 적용환경
기본 사양
SPECIFICATIONS
hs-28
DESCRIPTION
Powered dual 18 inch ACM™ subwoofer system
ACOUSTIC DATA
Frequency Response -3dB (+- 1.5 dB)
35 – 80 Hz
Efficiency (1W/1m)
99 dB SPL
Max Peak SPL (band limited pink noise 6 dB crest factor
140 dB SPL half space peak
Max SPL Long Term (SPL @ 1 M before protection Sine Wave)
128 dB SPL Free Field
Coverage Horizontal & Vertical
360 degrees – 6 dB
AMPLIFIER DATA
Amplifier Power (Long Term Sine Wave before protection)
LF 1: 830 wattsLF 2: 830 watts
Peak Amplifier Power ( @ 1% THD+N)
LF 1: 2000 wattsLF 2: 2000 watts
Amplifier Protection
Input limiter, short circuit protection, DC protection of output, intelligent mains fuse protection, power stage overload protection, temperature protection of transformers and heat-sinks
Operational Voltage
Universal Mains, 85-268V (dual voltage auto selection). UREC™ power supply provides true universal worldwide mains operation for 120V and 230V, eliminating the need for market specific self-powered loudspeakers and related reliability issues.
THD+N (typical)
< 0,05 % (20 Hz – 20 kHz, 3 dB below rated power)
DSP
96k Hz sample rate, mixed-mode 64-bit digital processing, 120 dB dynamic range, less than 600 microseconds latency
Control Network
Ethernet / TCP/IP, Fixed IP or DHCP remote monitoring and control
TRANSDUCER DATA
LF Description
Dual 18”, paper cone, cloth surround, 4” (100 mm) voice coil, ferrite, 8 Ohm
PHYSICAL DATA
Inputs
Female XLR input with male XLR loop output for both Analogue input and AES EBU digital input (default digital AES channel 1, channel 2 selectable remotely via software). If clock is present system uses AES digital input. System will fall back on analog input if clock is not present. Dante audio over ethernet.
Cabinet Material
Multi-ply birch hardwood
Cabinet Finish
Black 6-layer coating
Dimensions (H x W x D)
21.18 x 38 x 32.01 in (538 x 965 x 813 mm)
Weight
Net: 228.1 lbs (103.46 kg) / Shipped: 259 lbs (117.48v kg)
