SPECIFICATIONS | hs-25 |
DESCRIPTION | Active dual 15-INCH ACM™ Subwoofer system |
ACOUSTIC DATA |
Frequency Response (+- 3 dB) | 32 – 169 Hz |
Efficiency (1W/1m) | 97 dB SPL |
Max Peak SPL(SPL @ 1 M before protection Sine Wave) | 131 SPL half space peak |
Max SPL Long Term (SPL @ 1 M before protection Sine Wave) | 125 SPL Free Field |
Coverage Horizontal & Vertical | 360 degrees – 6 dB |
AMPLIFIER DATA |
Amplifier Power (Long Term Sine Wave before protection) | LF 1: 750 wattsLF 2: 750 watts |
Peak Amplifier Power ( @ 1% THD+N) | LF 1: 1,800 wattsLF 2: 1,800 watts |
Amplifier Protection | Input limiter, short circuit protection, DC protection of output, intelligent mains fuse protection, power stage overload protection, temperature protection of transformers and heat-sinks |
Operational Voltage | Universal Mains, 85-268V (dual voltage auto selection). UREC™ power supply provides true universal worldwide mains operation for 120V and 230V |
THD+N (typical) | < 0,05 % (20 Hz – 20 kHz, 3 dB below rated power) |
DSP | 96k Hz sample rate, mixed-mode 64-bit digital processing, 120 dB dynamic range, less than 600 microseconds latency |
Control Network | Ethernet / TCP/IP, Fixed IP or DHCP remote monitoring and control |
TRANSDUCER DATA |
LF Description | Dual 15”, paper cone, cloth surround, dual-spider, 4” (100 mm) voice coil, ferrite, 8 Ohm |
PHYSICAL DATA |
Inputs | Female XLR input with male XLR loop output for both Analogue input and AES EBU digital input (default digital AES channel 1, channel 2 selectable remotely via software). If clock is present system uses AES digital input. System will fall back on analog input if clock is not present. Dante audio over ethernet. |
Cabinet Material | Multi-ply birch hardwood |
Cabinet Surface | Black 6-layer coating |
Dimensions (H x W x D) | 17.99 x 32 x 27.9 in (457 x 813 x 688 mm) |
Weight | Net: 184.9 lbs (83.86 kg) / Shipping: 206.6 lbs (93.71 kg) |

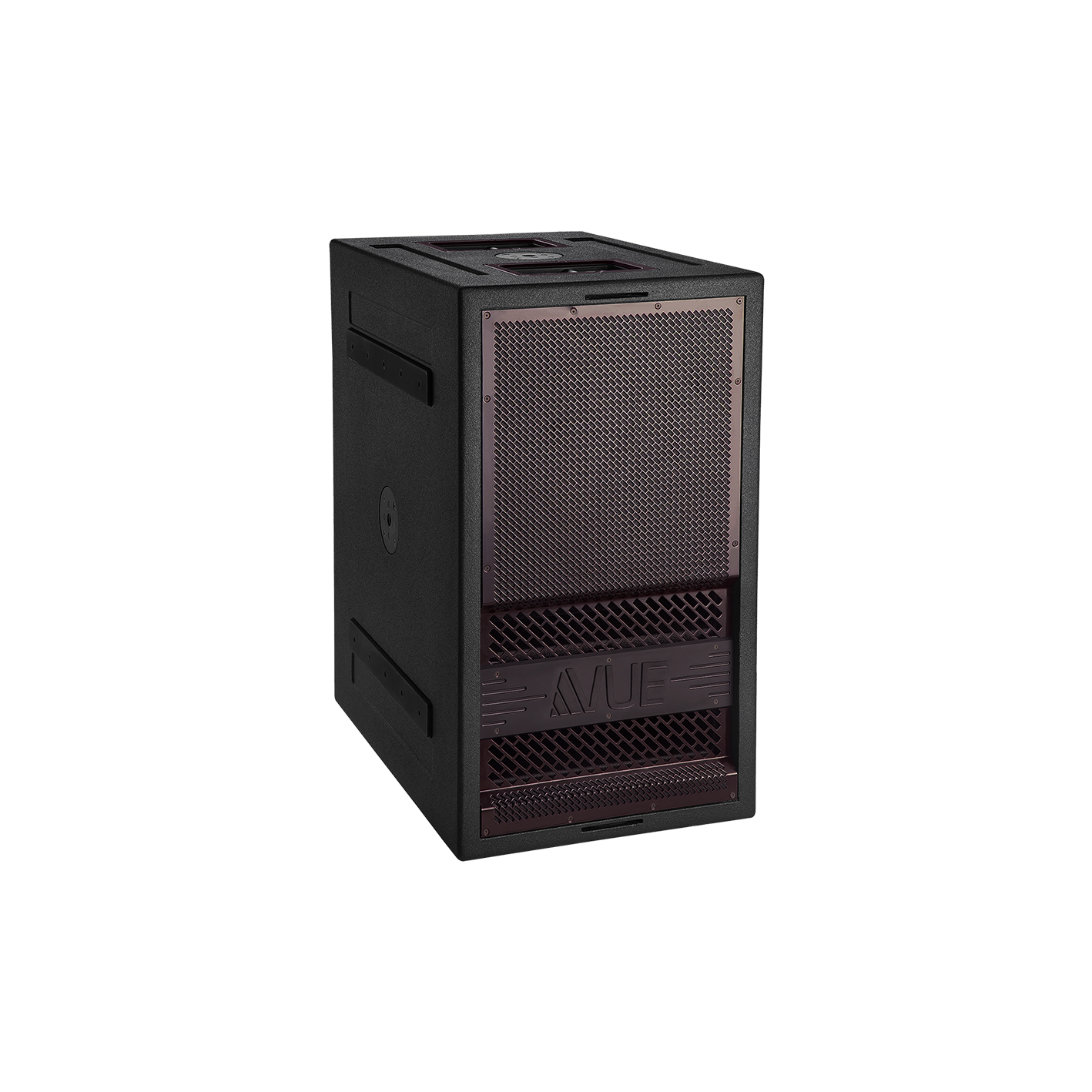

hs-25 – 듀얼 15" 액티브 서브우퍼 스피커
기본 정보
hs-25는 hs-28의 큰 동생이라고 부를 수 있는 모델입니다. 이 hs-25 역시 당사의 혁신적인 ACM 기술을 사용하여 일반적인 15인치 우퍼 사이즈에 듀얼 15인치로 구성하여 순수하고 깨끗한 저음을 전달합니다.
VUE의 특허 출원 중인 이 ACM 기술은 밴드패스 및 공기 흐름에 대한 정교한 기술을 모두 단일 인클로저에 결합합니다. hs-25은 2개의 고성능 15인치 트랜스듀서를 공통된 통풍 챔버에 배치합니다. 한 우퍼는 직접적인 정만 방사를 맡고 또 다른 우퍼는 밴드패스 구성으로 결합하여 인클로저의 크기를 줄이면서도 저주파수 재생대역은 전통적인 서브우퍼와 동일하게 유지함과 동시에 출력음압을 증가시킨 유니크한 하이브리드 디자인입니다. 덕분에 동일한 크기의 전통적인 서브우퍼보다 더 깊은 저음을 재생할 수 있습니다.
두 개의 서브우퍼들은 동일한 스피커의 내부공간을 공유하고 있지만 DSP 프로세싱을 통해 한쪽 드라이버 신호에 딜레이를 추가함으로써 각 드라이버들의 상하 운동에도 스피커의 내부공간을 번갈아 공유하여 내부 공기압은 일정하도록 디자인함으로써 더 큰 스피커의 캐비닛을 사용하는 것과 같은 효과를 낼 수 있습니다. 강력한 내장 앰프 모듈은 각 우퍼에 최적화된 신호와 함께 750W의 순수한 사인파 전력(1800W "버스트")을 보냅니다. 3600와트의 버스트 전력 조합은 일반적인 플로어 스택 설치 시 137dB 이상의 피크 출력을 생성합니다.
이러한 hs-25의 ACM 구성에는 고성능 트랜스듀서가 필요했습니다. hs-25를 위해 VUE 에서 개발한 15인치 우퍼는 4인치 보이스 코일을 특징으로 디자인되어 향상된 파워 핸들링과 낮은 소비전력을 실현할 수 있었습니다.
hs-25 적용환경
Active Compliance Management (ACM) Technology
ACM, 특수 설계된 변환기 및 정밀 전자 장치의 조합을 통해 hs-25는 대부분의 듀얼 15인치 베이스 리플렉스 타입 우퍼보다 더 작은 인클로저에서 작동 대역폭 전체에 걸쳐 훨씬 더 높은 출력을 제공할 수 있습니다. 모든 h-Class 시스템과 마찬가지로 hs-25에는 이미 네트워킹 기능이 탑재되어 있습니다. VUE는 표준 IP 프로토콜을 사용하여 네트워킹 프로세스를 단순화합니다. 간단히 연결하기만 하면 hs-25가 대부분의 IP 를 사용하는 로컬 네트워크를 통해 자동으로 제어 가능합니다. 사용자는 SystemVUE 소프트웨어를 통해 네트워크 및 장치의 설정 값을 변경하거나 모니터링할 수 있습니다.
기본 사양
SPECIFICATIONS
hs-25
DESCRIPTION
Active dual 15-INCH ACM™ Subwoofer system
ACOUSTIC DATA
Frequency Response (+- 3 dB)
32 – 169 Hz
Efficiency (1W/1m)
97 dB SPL
Max Peak SPL(SPL @ 1 M before protection Sine Wave)
131 SPL half space peak
Max SPL Long Term (SPL @ 1 M before protection Sine Wave)
125 SPL Free Field
Coverage Horizontal & Vertical
360 degrees – 6 dB
AMPLIFIER DATA
Amplifier Power (Long Term Sine Wave before protection)
LF 1: 750 wattsLF 2: 750 watts
Peak Amplifier Power ( @ 1% THD+N)
LF 1: 1,800 wattsLF 2: 1,800 watts
Amplifier Protection
Input limiter, short circuit protection, DC protection of output, intelligent mains fuse protection, power stage overload protection, temperature protection of transformers and heat-sinks
Operational Voltage
Universal Mains, 85-268V (dual voltage auto selection). UREC™ power supply provides true universal worldwide mains operation for 120V and 230V
THD+N (typical)
< 0,05 % (20 Hz – 20 kHz, 3 dB below rated power)
DSP
96k Hz sample rate, mixed-mode 64-bit digital processing, 120 dB dynamic range, less than 600 microseconds latency
Control Network
Ethernet / TCP/IP, Fixed IP or DHCP remote monitoring and control
TRANSDUCER DATA
LF Description
Dual 15”, paper cone, cloth surround, dual-spider, 4” (100 mm) voice coil, ferrite, 8 Ohm
PHYSICAL DATA
Inputs
Female XLR input with male XLR loop output for both Analogue input and AES EBU digital input (default digital AES channel 1, channel 2 selectable remotely via software). If clock is present system uses AES digital input. System will fall back on analog input if clock is not present. Dante audio over ethernet.
Cabinet Material
Multi-ply birch hardwood
Cabinet Surface
Black 6-layer coating
Dimensions (H x W x D)
17.99 x 32 x 27.9 in (457 x 813 x 688 mm)
Weight
Net: 184.9 lbs (83.86 kg) / Shipping: 206.6 lbs (93.71 kg)
