SPECIFICATION | hm-115 |
DESCRIPTION | Single 15-Inch high definition stage monitor system |
ACOUSTIC DATA |
Frequency Response (+- 3 dB) | 50 – 21 kHz |
Efficiency (1W/1m Equivalent over operating band) | 97 dB |
Max SPL † Average (band limited pink noise 6 dB crest factor) Transient Peak (Program Material) | 126 dB SPL @ 1m136 dB SPL@ 1m |
Max SPL Long Term (AVG SPL @ 1 M before protection band limited pink noise) | 120 dB SPL |
Coverage Horizontal | 70 degrees – 6dB |
Coverage Vertical | 45 degrees -6dB |
AMPLIFIER DATA (hm + V4) | V4 – 2x Inputs (mixes) 2x Bi-amped Outputs (each Output Powered one hm-115 at 8Ω or two hm-115 at 4Ω |
Configuration | LF: 830 watts rms per hm-115HF: 275 watts rms per hm-115V4 provides 3 to 10 dB transit headroom program signal dependent (Burst output above the long term sine wave specified ) |
Amplifier Power (Long Term Sine Wave before protection) | Input limiter, short circuit protection, DC protection of output, intelligent mains fuse protection, power stage overload protection, temperature protection of transformers and heat-sinks |
Amplifier Protection | Universal Mains, 85-268V (dual voltage auto selection). UREC™ power supply integrated |
Operational Voltage | amplifier modules provide universal mains operation for 120 V and 230 V, eliminating the need |
THD+N (typical) | for market specific self-powered loudspeakers and related reliability issues. |
DSP | 96k Hz sample rate, mixed-mode 64-bit digital processing, 120 dB dynamic range, less than 600 microseconds latency |
Control Network | Ethernet / TCP/IP, Fixed IP or DHCP remote monitoring and control |
TRANSDUCER DATA |
LF Description | 8 ohm total – 15”, paper cone, cloth surround, 4” (100 mm) voice coil, ferrite, 8 Ohms each |
HF Description | 8 ohm total – 4in (100mm) voice coil Neo Truextent® beryllium diaphragm |
PHYSICAL DATA |
Loudspeaker Inputs | NL4 |
Amplifier Inputs | Female XLR input with male XLR loop output for both Analogue input and AES EBU digital input (default digital AES channel 1, channel 2 selectable remotely via software). If clock is present system uses AES digital input. System will fall back on analog input if clock is not present.. Dante audio over Ethernet. |
Cabinet Material | Multi-ply birch hardwood |
Cabinet Finish | Black 12 step Dura-Coat LX coating |
Dimensions (H x W x D) | 18.94 x 27.00 x 13.97 in (481 x 686 x 355 mm) |
Weight | Net: 76.6 lbs (34.8 kg) /Shipped: 84.8 lbs (38.46 kg) |
† Long Term Max SPL is recommended for system design purposes and represents the average output before protection and after power compression. In accordance with common industry practice, Peak Data is provided for comparison purposes. |

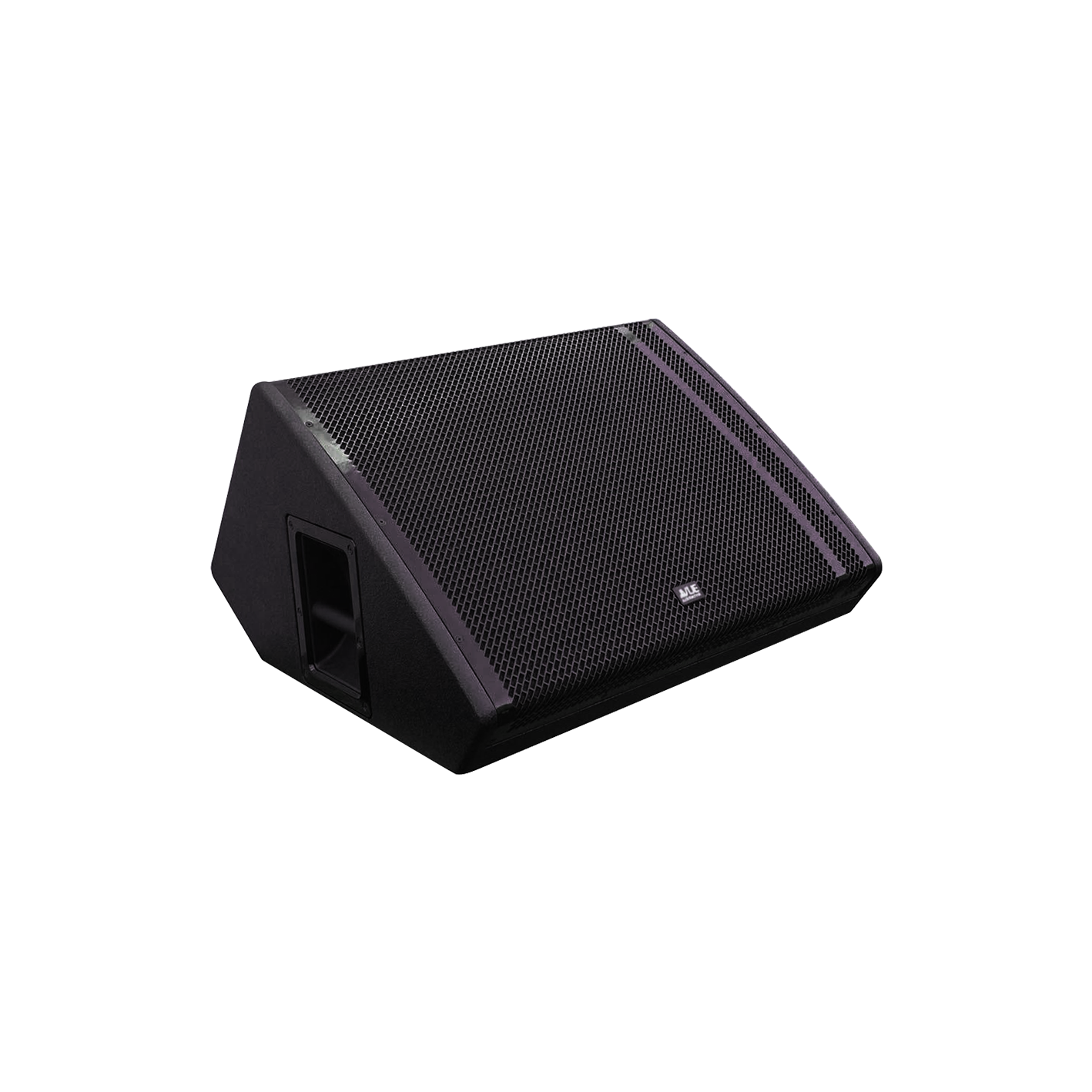

hs-115 – 싱글 15" 패시브 모니터 스피커
기본 정보
VUE의 다른 h-Class 시리즈와 마찬가지로 “타협하지 않는” 디자인 철학으로 설계된 hm-115는 VUE 의 가장 진보된 기술을 활용하여 매우 작고 뛰어난 내구성을 기본으로 탁월한 출력과 선명한 소리를 표한할 수 있는 스테이지 모니터 스피커 입니다.
이 새로운 hm-115는 최첨단 소재의 베릴륨 다이어프램과 VIUE의 최신 VUEDrive 시스템 엔진인 V4와 완벽하게 조화를 이루어 대부분의 폴드백 사용 환경에서 타 스피커와 비교할 수 없는 출력과 선명한 음색을 표현합니다.
Rugged and Purposeful Enclosure Design
이 정밀하게 설계된 트랜스튜서는 청중과 무대 위 연주자 사이의 시야를 방해하지 않고도 모니터 스피커 바로 위 뿐만 아니라 무대 아래에서도 연주자에게 광범위한 스윗 스팟을 재공할 수 있도록 설계 되었습니다.
견고한 Dura-Coat LX 마감 처리와 파우더 코팅 처리된 그릴은 다양한 사용 환경에서 최상의 내구성을 발휘합니다.
Road Tested and Stage Ready
hm 모니터 스피커는 디자인 책임자인 Michael Adams 의 30년 이상 라이브 및 방송 분야에서 세계적인 아티스트들과 함께 일해 온 경험을 반영하여 설계 되었습니다. 덕분에 hm-115 모니터 스피커가 어떠한 상황에도 일관적인 성능을 제공할 수 있도록 탁월한 성능을 제공합니다.
Cutting Edge Transducers

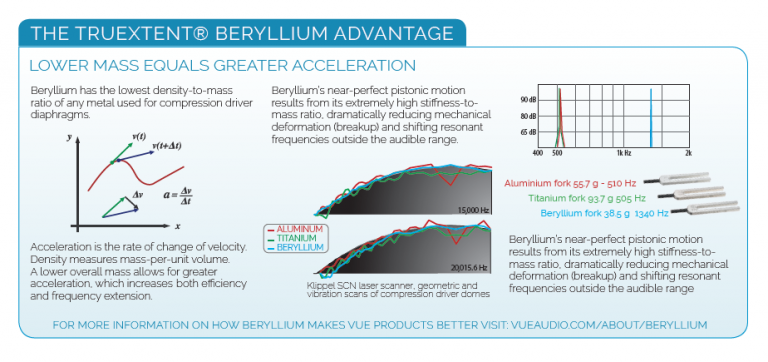

앞서 설명 드렸던 hm-115 모니터 스피커 뛰어난 성능은 VUE 의 혁신적인 Truextent® 베릴륨 다이어프램을 장착한 혼-로드 방식의 컴프레션 드라이버와 정밀하게 설계된 15인치 LF 드라이버를 결합하는 과정에서부터 시작됩니다. 베릴륨의 극도로 높은 강성 대 질량 비율 덕분에 이 컴프레셔 드라이버는 기존의 알루미늄 혹은 티타늄 재질의 HF 드라이버 대비 훨씬 높고 선명한 출력을 제공합니다. 드라이버는 최대 출력까지 일관된 충실도와 피드백 안정성을 보장할 수 있도록 설계된 거대한 보이스 코일 및 자석 어셈블리를 갖추고 있습니다.
hm-115 적용환경
기본 사양
SPECIFICATION
hm-115
DESCRIPTION
Single 15-Inch high definition stage monitor system
ACOUSTIC DATA
Frequency Response (+- 3 dB)
50 – 21 kHz
Efficiency (1W/1m Equivalent over operating band)
97 dB
Max SPL † Average (band limited pink noise 6 dB crest factor) Transient Peak (Program Material)
126 dB SPL @ 1m136 dB SPL@ 1m
Max SPL Long Term (AVG SPL @ 1 M before protection band limited pink noise)
120 dB SPL
Coverage Horizontal
70 degrees – 6dB
Coverage Vertical
45 degrees -6dB
AMPLIFIER DATA (hm + V4)
V4 – 2x Inputs (mixes) 2x Bi-amped Outputs (each Output Powered one hm-115 at 8Ω or two hm-115 at 4Ω
Configuration
LF: 830 watts rms per hm-115HF: 275 watts rms per hm-115V4 provides 3 to 10 dB transit headroom program signal dependent (Burst output above the long term sine wave specified )
Amplifier Power (Long Term Sine Wave before protection)
Input limiter, short circuit protection, DC protection of output, intelligent mains fuse protection, power stage overload protection, temperature protection of transformers and heat-sinks
Amplifier Protection
Universal Mains, 85-268V (dual voltage auto selection). UREC™ power supply integrated
Operational Voltage
amplifier modules provide universal mains operation for 120 V and 230 V, eliminating the need
THD+N (typical)
for market specific self-powered loudspeakers and related reliability issues.
DSP
96k Hz sample rate, mixed-mode 64-bit digital processing, 120 dB dynamic range, less than 600 microseconds latency
Control Network
Ethernet / TCP/IP, Fixed IP or DHCP remote monitoring and control
TRANSDUCER DATA
LF Description
8 ohm total – 15”, paper cone, cloth surround, 4” (100 mm) voice coil, ferrite, 8 Ohms each
HF Description
8 ohm total – 4in (100mm) voice coil Neo Truextent® beryllium diaphragm
PHYSICAL DATA
Loudspeaker Inputs
NL4
Amplifier Inputs
Female XLR input with male XLR loop output for both Analogue input and AES EBU digital input (default digital AES channel 1, channel 2 selectable remotely via software). If clock is present system uses AES digital input. System will fall back on analog input if clock is not present.. Dante audio over Ethernet.
Cabinet Material
Multi-ply birch hardwood
Cabinet Finish
Black 12 step Dura-Coat LX coating
Dimensions (H x W x D)
18.94 x 27.00 x 13.97 in (481 x 686 x 355 mm)
Weight
Net: 76.6 lbs (34.8 kg) /Shipped: 84.8 lbs (38.46 kg)
† Long Term Max SPL is recommended for system design purposes and represents the average output before protection and after power compression. In accordance with common industry practice, Peak Data is provided for comparison purposes.
